FEATURES
(1) Each series is fully compatible for direct
circuit board mounting
¡@¡@ based on standard 2.54 mm pitch.
(2) The precision moulded cases are constructed from fully UL
¡@¡@ approved materials.
(3) MD and SD series can be used in wave soldering and flux wash
¡@¡@ removal applications.
(4) Switch covers are fitted by our exclusive press methods.
¡@¡@This completely eliminates any problems of breakdown during
¡@¡@the ultrasonic welding process used in their manufature.
(5) Each series is available with gold plating on nickel ( G-Type ) and
¡@¡@ the self cleaning contact point function assures high performance
¡@¡@ and reliability at low voltage and and low current applications.
¡@¡@ ( Z-Type ) Tin plating is available at a lower cost.
(6) We stop the manufacture MD-10Z and MD-10G.
 |
|
Type |
Poles (n) |
¢Ï
dimension¡] mm¡^ |
| MD-
01 |
1 |
5.5 |
| MD-
02 |
2 |
8.0 |
| MD-
03 |
3 |
10.5 |
| MD-
04 |
4 |
13.0 |
| MD-
05 |
5 |
15.5 |
| MD-
06 |
6 |
18.0 |
| MD-
08 |
8 |
23.0 |
| MD-
09 |
9 |
25.5 |
|
--------- |
--------- |
--------------------- |
| MD-
12 |
12 |
33.0 |
|
¡@
|
Specifications |
|
|
|
Rating |
100¢õA¡@50V¡@DC
on load
25mA¡@25V¡@DC on switching
100mA¡@5V¡@DC on switching |
Rating |
100mA¡@50V¡@DC
on load
25mA¡@25V¡@DC on switching
100mA¡@5V¡@DC on switching |
|
Contact resistance |
50¢õ£[ max |
Contact resistance |
100¢õ£[ max |
|
Insulation resistance |
500V¡@DC¡D¡@100M£[ min |
Insulation resistance |
500V¡@DC¡D¡@100M£[ min |
|
Dielectric strength |
500V¡@DC¡D1minute |
Dielectric strength |
500V¡@DC¡D1minute |
|
Durability |
1,000
operations. min. |
Durability |
100
operations. min. |
|
Operating force |
500g max |
Operating force |
500g max |
¡@
|

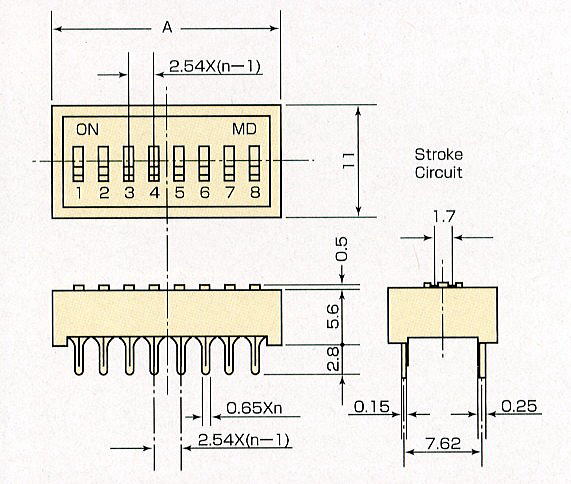

Drawing |
 |
|
(If you have
any question please contact us for further information )
