Product > Maruwa > MHS
Series
FEATURES
(1) This series is surface mount type based on
1.27 mm pitch.
(2) The contacts is twin points and gold-plated.
(3) You have a choice of Reel or Tube for the packaging.
(4) The epoxies sealed ( treated whole internal circumference and
¡@¡@ a part of outer circumference ) keep out impure flux.
(5) Heat-resistant resin ( LCP- Liquid Cristal Polymer ) was used.
(6) Available for Pb-free ( lead-free ) mounting.
 |
|
Type |
Poles (n) |
¢Ï
dimension¡] mm¡^ |
|
MHS- 02 |
2 |
4.3 |
|
MHS- 04 |
4 |
6.9 |
|
MHS- 06 |
6 |
9.4 |
|
MHS- 07 |
8 |
12.0 |
|
¡@
* B-Type : Available actuators ¡§OFF¡¨ down
type.
¡@ ( Such as YD-08ZB, YD-08GB )
¡@
|
Specifications |
|
Rating |
100mA 50V DC
on load
25mA 25V DC on switching
100mA 5V DC on switching |
|
Contact
resistance |
100m£[ max |
|
Insulation
resistance |
100V¡@DC¡D100M£[ min |
|
Dielectric
strength |
250V¡@DC¡D1
minute |
|
Durability |
1,000
operations. min. |
|
Operating
force |
500g max |
|
|
¡@
|

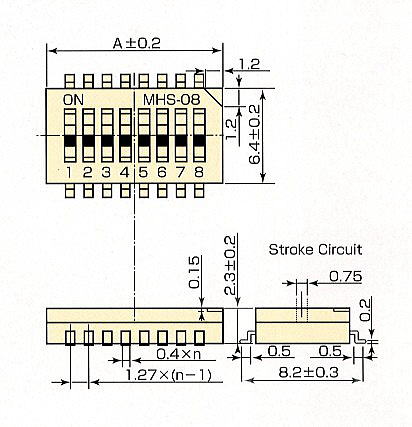

Drawing |
  |
|
¡@
¡@
¡@
¡@
¡@
(If you have
any question please contact us for further information )
