SD Series SMT Type(Surface mount)
¡@
FEATURES
(1) This series features built in earth terminals
to protect against
¡@¡@ possible breakdown due to static electricity.
(2) The switches may be used in all SMD technology
applications
¡@¡@ with regards to soldering methods providing the parts are not
¡@¡@ subjected to temperatures exceeding 280 degrees C.
 |
|
Type |
Poles (n) |
A
dimension¡] mm¡^ |
SD-02ZESOL
SD-02GESOL |
2 |
7.3 |
SD-04ZESOL
SD-04GESOL |
4 |
12.5 |
SD-06ZESOL
SD-06GESOL |
6 |
17.5 |
SD-08ZESOL
SD-08GESOL |
8 |
22.5 |
|
¡@
* F-Type : Option with low profile slide
actuator is available.
¡@ ( Such as SD-08ZESOF, SD-08GESOF )
¡@
|
Specifications |
|
|
|
Rating |
100¢õA¡@50V¡@DC
on load
25mA¡@25V¡@DC on switching
100mA¡@5V¡@DC on switching |
Rating |
100mA¡@50V¡@DC
on load
25mA¡@25V¡@DC on switching
100mA¡@5V¡@DC on switching |
|
Contact resistance |
50¢õ£[ max |
Contact resistance |
100¢õ£[ max |
|
Insulation resistance |
300V¡@DC¡D¡@100M£[ min |
Insulation resistance |
300V¡@DC¡D¡@100M£[ min |
|
Dielectric strength |
300V¡@DC¡D1minute |
Dielectric strength |
300V¡@DC¡D1minute |
|
Durability |
1,000
operations. min. |
Durability |
100
operations. min. |
|
Operating force |
800g max |
Operating force |
800g max |
¡@
|

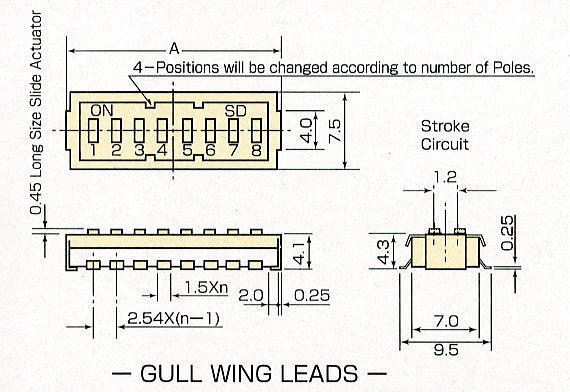

Drawing |
 |
|
¡@
¡@
¡@
¡@
¡@
(If you have
any question please contact us for further information )
