FEATURES

(1) Each series is fully compatible for direct circuit board mounting
　　 based on standard 2.54 mm pitch.
(2) The precision moulded cases are constructed from fully UL
　　 approved materials.
(3) MD and SD series can be used in wave soldering and flux wash
　　 removal applications.
(4) Switch covers are fitted by our exclusive press methods.
　　This completely eliminates any problems of breakdown during
　　the ultrasonic welding process used in their manufature.
(5) Each series is available with gold plating on nickel ( G-Type ) and
　　 the self cleaning contact point function assures high performance
　　 and reliability at low voltage and and low current applications.
　　 ( Z-Type ) Tin plating is available at a lower cost.

Type Poles (n) Ａ dimension（ mm） SD- 02L 2 6.8 SD- 03L 3 9.4 SD- 04L 4 12.0 SD- 05L 5 14.5 SD- 06L 6 17.0 SD- 08L 7 22.0 SD- 09L 9 24.5 SD- 10L 10 27.0 SD- 12L 12 32.0

* F-Type : Option with low profile slide actuator is available.
　 (Such as SD-08ZF, SD-08GF)

* Distance between two terminal lines 7.62 mm are also available.

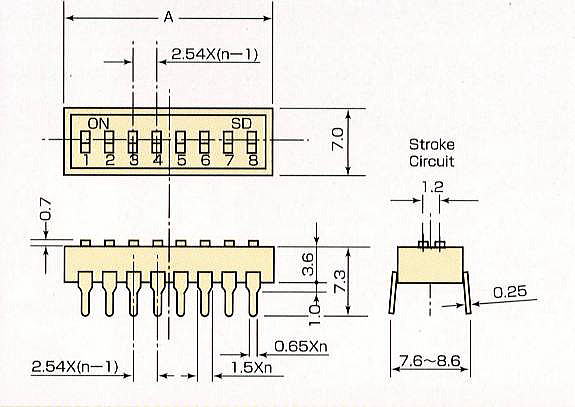

　 The portion of 7.6 -8.6 in the following figure.
　 (Such as SD-08ZL/AC

Specifications

G-Type Z-Type

Rating 100ｍA　50V　DC on load 25mA　25V　DC on switching 100mA　5V　DC on switching Rating 100mA　50V　DC on load 25mA　25V　DC on switching 100mA　5V　DC on switching Contact resistance 50ｍΩ max Contact resistance 100ｍΩ max Insulation resistance 300V　DC．　100MΩ min Insulation resistance 300V　DC．　100MΩ min Dielectric strength 300V　DC．1minute Dielectric strength 300V　DC．1minute Durability 1,000 operations. min. Durability 100 operations. min. Operating force 800g max Operating force 800g max 　 Drawing
