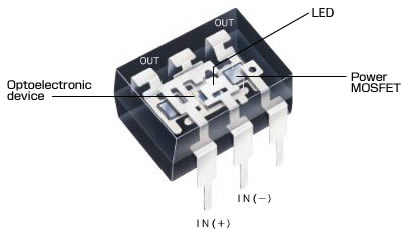

PhotoMOS Relays Feature

FEATURES

1.Controls low-level analog signals with Low ON resistance
36mΩ(typ.)Low ON resistance (High Power capacity type; Load voltage: 60V)
1μV(typ.)Less than offset voltage for a closed circuit

2.High speed opeartion
0.02ms(typ.)switching speed (RF CxR10 type)

3.Low leakage current
10pA(typ.)leakage current for an open circuit (RF CxR type)

4.High sensitivity, low operate current
0.31mA(typ.)LED opearte current (HS type)

5.A variety of circuit cinfigurations
1,2,4 Circuit
b contact (normally-closed) ,1a1b contact

6.Ultra-small, Low profile and space saving
Package line-up

SOP type
- Mounting height: 2.1mm .083inch

- GU, RF (Low ON resistance) ,HE type available

SON type

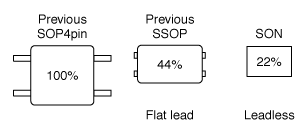

The SON type is a new PhotoMOS relay with approximately 43% volume ratio of
previous SSOP type.

Reduced to approximately 43% volume ratio


Area comparison (including leads)


Next
