Motion Sensor (Area reflective type)

Features

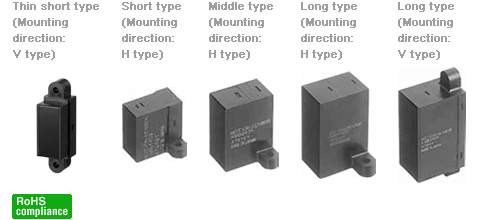

1.Now even more miniature

The new thin type cuts 35% from the thickness of the previous short type.
Device installing is now easier than ever.

*"W" and "H" are detection value measurements.

2.Certain detection unaffected by the reflectance of the object

The sensor can provide stable detection that is not affected by the condition (color or
material of the clothing) or parts (skin, hair, etc.) of the object being monitored.
(Reflectance 18% to 90%). Excellent performance even when the detection surface is
dirty.

3.Only connecting DC power supply for operating

Built-in oscillation circuit type obviates the hitherto existing need for start signal input.

4.Use in adjacent positions is possible

These sensors can be located in adjacent positions, because the timing of the external
trigger signals can be adjusted so that the beam frequency of each adjacent sensor will
not interfere with the other.

5. Battery drive possible

By applying longer interval for the trigger signal, you can reduce the total power
consumption.

6.Can be used with a number of different supply voltages.

- The 5V DC type ( 4.5 to 6.5V DC)

- The free-ranging power type ( 6.5 to 27V DC)

They support the DC power supplies of electronic products and equipment in general.
*The thin short type is only available for 5V DC.

7.The open collector output system makes for easy load drive.
These sensors provide a continuous output during detection because the output system
makes it easy to drive the load. They achieve an output performance of 30V, Built-in
oscillation circuit type:
100 mA, External triggering type: 10 mA (Thin short type: 100 mA).
Also, the thin short type is available in a PNP open collector type in addition to a NPN
open collector type.

(If you have any question please contact us for further information )
