FEATURES

(1) This series has been designed to protect against possible
　　 breakdown due to static electricity.
(2) This can result in cost reduction due to the possible elimination
　　 or reduction of the number of capacitors and / or resistors
　　 associated with the circuitry if such components are used to
　　 function as protection for static electricity breakdown.
(3) Minimum withstanding voltage between terminals and the shielding
　　 case is 2,000 volt AC, in ‘OFF’ position.
(4) Pin spacing of switches are fully compatible with standard
　　 I..C.pin layout.

Type Poles (n) Ａ dimension（ mm） SD- 02EL 2 7.3 SD- 04EL 4 12.5 SD- 06EL 6 17.5 SD- 08EL 8 22.5 SD- 09EL 9 25.0 SD- 10EL 10 27.5

* F-Type：Option with low profile slide actuator is available.
　(Such as SD-08ZEF, SD-08GEF)

Specifications

G-Type Z-Type

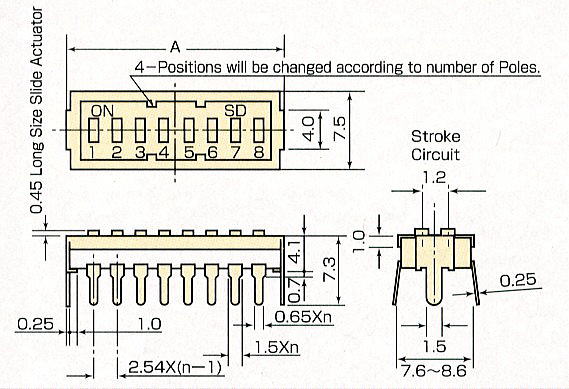

Rating 100ｍA　50V　DC on load 25mA　25V　DC on switching 100mA　5V　DC on switching Rating 100mA　50V　DC on load 25mA　25V　DC on switching 100mA　5V　DC on switching Contact resistance 50ｍΩ max Contact resistance 100ｍΩ max Insulation resistance 300V　DC．　100MΩ min Insulation resistance 300V　DC．　100MΩ min Dielectric strength 300V　DC．1minute Dielectric strength 300V　DC．1minute Durability 1,000 operations. min. Durability 100 operations. min. Operating force 800g max Operating force 800g max 　 Drawing
